CO2 Incubator
Description

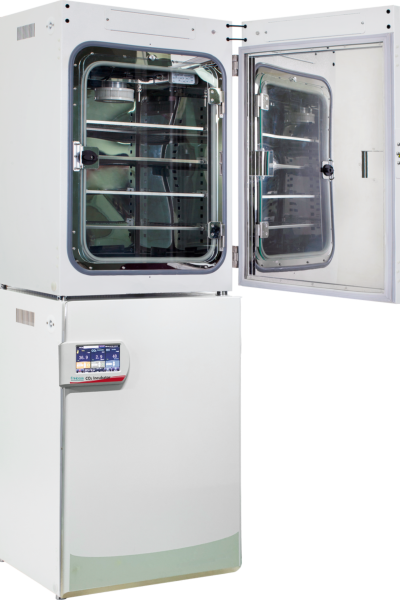

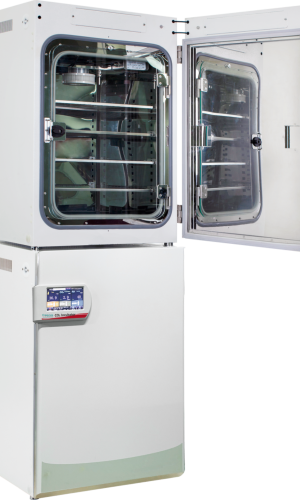

CO₂ incubators are designed to provide a stable and controlled environment for the growth and maintenance of cell cultures. They precisely regulate temperature, humidity, and carbon dioxide levels to mimic physiological conditions, ensuring optimal cell viability and reproducibility. Our CO₂ incubator range offers reliable performance, uniform conditions, and contamination-control features suitable for research, clinical, and biopharmaceutical applications.
Features
• Air-jacketed CO₂ incubator with dry-wall thermal insulation
• Accurate regulation of temperature, CO₂ levels, and humidity
• HEPA-filtered chamber delivering Class 100 clean air environment
• High-precision infrared CO₂ sensing technology
• Simple and efficient 140°C dry-heat sterilization cycle
• Condensation-free, temperature-regulated door for enhanced uniformity
• User-friendly 7-inch high-resolution capacitive touch display
• Supplied with 4 configurable shelves (expandable up to 13)
• Advanced remote monitoring and control via mobile app
• Real-time performance tracking with graphical data visualization
• Integrated audible and visual alerts for out-of-range conditions
Specifications
| Model | CI-191CXA |
|---|---|
| Product Name | CO₂ Incubator, Dry Heat Sterilization, Touch Screen |
| Capacity | 191 L (6.75 cu ft) |
| Temperature Range | Room Temp. +5°C to 60°C |
| Temperature Accuracy | ±0.1°C @ 37°C, ±0.3°C max |
| Temperature Uniformity | ±0.3°C @ 37°C, ±0.6°C max |
| CO₂ Sensor | Infrared (IR) |
| CO₂ Concentration Range | 0 – 20% |
| CO₂ Concentration Accuracy | ±0.1% |
| Temperature Recovery Time (Door Open) | ≤ 6 min @ 37°C |
| CO₂ Recovery Time (Door Open) | ≤ 6 min @ 5% |
| Relative Humidity Type | Natural evaporation from humidity pan |
| Disinfection Method | 140°C Dry Heat Sterilization |
| Disinfection Duration | 12 hours |
| Door Swing Direction | Right |
| Display | 7″ Color Capacitive Touch Screen |
| Protection for Set Parameters | Password protected |
| Data Display | Most recent 7 days of data |
| Data Curve Display | Temp, CO₂, RH curves |
| Maximum Number of Shelves | 13 |
| Standard Number of Shelves | 4 |
| Shelf Dimensions (D × W) | 472 × 472 mm (18.85 × 18.85 in) |
| Max Load per Shelf (Sliding) | 15 kg (33.06 lb) |
| Max Load per Shelf (Stationary) | 20 kg (44.09 lb) |
| Insulation | Dry-wall |
| USB Data Download | Yes |
| Data Storage | Most recent 912 days |
| Data Storage Interval | 1 minute |
| Noise Level | ≤ 53 dB |
| Water Spillage Resistant | Yes |
