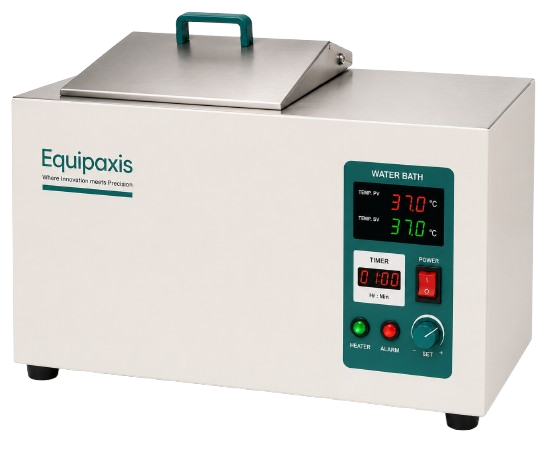

CIRCULATING WATER BATH
Description
Equipaxis Circulating Water Bath is a high-performance temperature control system designed to deliver reliable, efficient, and consistent heating with enhanced uniformity. Ideal for laboratories, research institutes, and industrial applications, it ensures precise temperature maintenance for critical processes.
Equipped with a built-in motorized circulation system and PID-controlled accuracy, the unit provides superior temperature uniformity throughout the chamber, making it perfect for sample incubation, reagent preparation, and sensitive thermal applications.
Features
- Superior Temperature Uniformity
- Precision Temperature Control
- Wide Temperature Range
- Robust Construction
- Efficient Heating System
- Advanced Insulation
- User-Friendly Operation
- Safe & Reliable Operation
Specifications
| Temperature Range | Ambient +5°C to 99°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Uniformity | ±0.5°C |
| Circulation System | Built-in motorized pump |
| Timer | Yes |
| Display | Digital Display |
| Temperature Controller | PID Controller |
| Inner Chamber Material | Stainless Steel |
| Outer Body Material | GI sheet powder coated |
| Insulation | Glass wool / PUF (Polyurethane Foam) |
| Chamber Construction | Double walled rectangular chamber |
| Heating System | Immersion heater |
| Power Supply | 220/230V AC |
Available Models
| Model No | Chamber Dimensions | Chamber Capacity | Wattage |
|---|---|---|---|
| EA501 | 10″x8″x7″ (250X200X175 mm) | 10 Ltr | 1.0KW |
| EA502 | 12″x10″x7″ (300X250X175mm) | 14 Ltr | 1.0KW |
| EA503 | 12″x12″x7″ (300X300X175mm) | 17 Ltr | 1.5KW |
| EA504 | 14″x12″x7″ (350X300X175mm) | 20 Ltr | 2.0KW |
| EA505 | 18″x12″x7″ (450X300X175mm) | 25 Ltr | 2.0KW |
