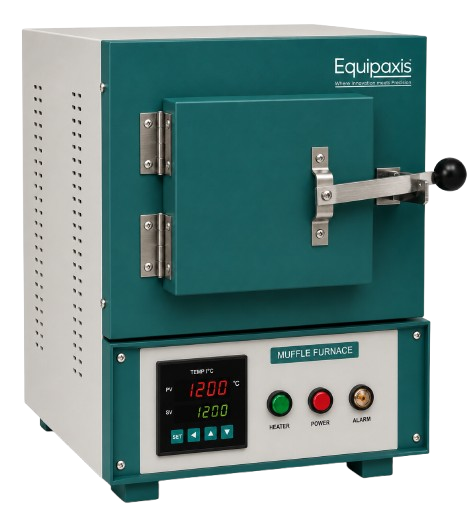

MUFFLE FURNACE
Description
Equipaxis Muffle Furnace is a high-performance heating system designed to deliver reliable, efficient, and consistent high-temperature operations for laboratory and industrial applications. Ideal for processes such as ashing, heat treatment, sintering, and material testing, it ensures precise thermal conditions for accurate results.
Equipped with advanced PID temperature control and high-quality heating elements, the system provides uniform heat distribution and stable performance, making it suitable for demanding high-temperature applications.
Features
- High-quality Kanthal A-1 heating elements ensure uniform heat distribution throughout the chamber for consistent and reliable performance.
- Designed to reach temperatures up to 1200°C with a working range of 1100°C, suitable for intensive the mal processes.
- Digital PID controller ensures accurate temperature regulation with minimal fluctuations for reproducible results.
- Equipped with an easy-to-use control panel and LED display for convenient monitoring and operation.
- Outer body made of powder-coated mild steel/Gl ensures durability, while the high-purity ceramic inner chamber enhances heat retention.
Ceramic fiber wool insulation minimizes heat loss and improvesenergy efficiency.
- Includes over-temperature protection and fuse/MCB protection to ensure safe and long-term operation.
- Engineered for consistent and stable operation across various laboratory and industrial heating applications.
Specifications
| Maximum Temperature | 1200°C |
| Working Temperature | 1100°C |
| Temperature Accuracy | ±5°C |
| Heating Element | Kanthal A-1 wire |
| Outer Body | Powder-coated mild steel / GI coated |
| Inner Chamber | High-purity ceramic |
| Insulation | Ceramic fiber wool for heat retention |
| Controller | Digital PID temperature controller |
| Display | LED display |
| Sensor | K-Type / Y-Type thermocouple |
| Door Type | Front opening, insulated door |
| Safety Features | Over-temperature protection, fuse protection |
| Power Supply | 220V / 230V, Single Phase, 50 Hz |
Available Models
| Model No. | Chamber Dimensions | Wattage |
|---|---|---|
| EA376 | 4 × 4 × 9″ | 3.0 KW |
| EA377 | 5 × 5 × 10″ | 3.5 KW |
| EA378 | 6 × 6 × 12″ | 4.5 KW |
| EA379 | 8 × 8 × 12″ | 5.0 KW |
