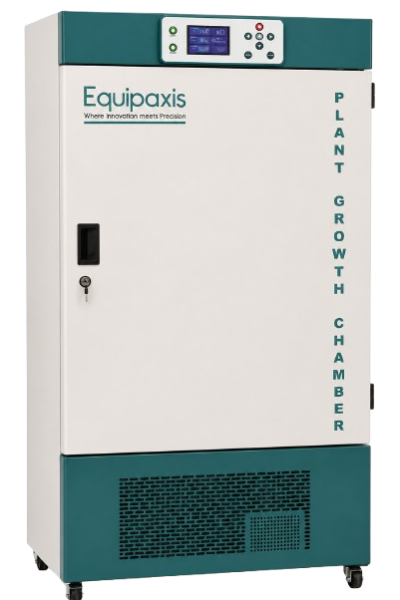

Plant Growth Chamber
Description
Equipaxis Plant Growth Chamber is a high-performance environmental control system designed to deliver precise, reliable, and consistent conditions for plant research and development. Ideal for laboratories, research institutions, and agricultural applications, it enables accurate simulation of natural growth environments.
With advanced PID-based temperature control, high humidity accuracy, and programmable photoperiod settings, the system ensures optimal conditions for every stage of plant growth-from germination to maturity-delivering repeatable and dependable results.
Features
- Advanced Environmental Control
- Flexible & Customizable Operation
- Uniform & Stable Performance
- Integrated Illumination System
- Robust Construction
- Energy Efficient Design
- User-Friendly Interface
- Practical & Secure Design
Specifications
| Temperature Range | 5°C to 60°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | ±1°C |
| Humidity Range | Up to 95% |
| RH Accuracy | ±5% RH |
| Humidity System | Water Reservoir at back |
| Shelves | 3 Wire Mesh |
| Type of Shelves | Removable |
| Temperature Controller | PID Controller |
| Display | Digital Display |
| temperature uniformity. | Air Circulating Fan |
| Illumination | LED Light inside the Chamber for Sample Viewing |
| Inner Chamber Material | Stainless Steel |
| Outer Body Material | GI sheet powder coated |
| Insulation | Glass wool / PUF (Polyurethane Foam) |
| Inner door material | Acrylic Sheet |
| Photoperiod Control | With Photoperiodic Timer |
| Working Environment | Controlled Atmospheric Conditions |
| Chamber Construction | Double walled |
| Door | With Key Lock |
| Power Supply | 220/230V AC |
Available Models
| Model No | Chamber Dimensions | Chamber Capacity |
|---|---|---|
| EA401 | 22X22X36″ (550X550X900mm) | 10 Cubic ft |
| EA402 | 24X24X36″ (600X600X900mm) | 12 Cubic ft |
| EA403 | 28X28X36″ (700X700X900mm) | 16 Cubic ft |
| EA404 | 30X30X42″ (750X750X1050mm) | 20 Cubic ft |
