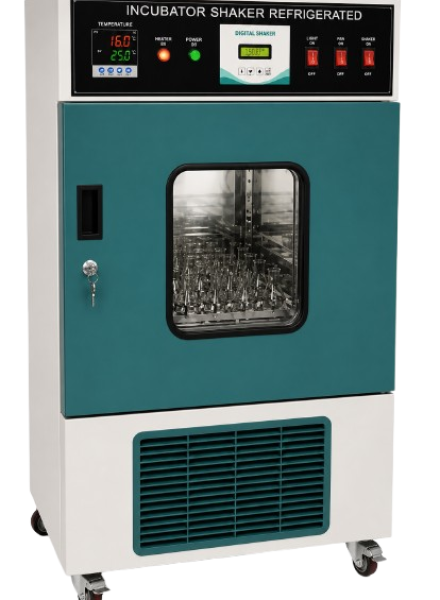

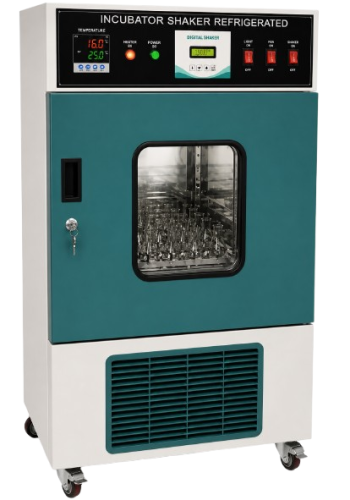

REFRIGERATED INCUBATOR SHAKER
Description
Equipaxis Refrigerated Incubator Shaker is a high-performance system designed to provide controlled temperature conditions combined with uniform shaking for advanced laboratory applications. Ideal for microbiology, cell culture, BOD testing, and biochemical studies, it ensures optimal growth and reaction conditions.
With integrated orbital shaking and precise PID temperature control, the system delivers consistent aeration, uniform mixing, and stable environmental conditions for reliable and reproducible results
Features
- Built-in orbital shaker ensures uniform mixing and proper aeration, enhancing microbial growth and experimental efficiency.
- Wide operating range (5°C to 60°C) with PID-based control ensures stable and accurate temperature conditions.
- Air circulation system maintains consistent temperature distribution throughout the chamber.
- Digital display for easy control of temperature, RPM, and time, with programmable settings for customized operation.
- Variable speed range from 35 to 250 RPM allows flexibility for different applications.
- Stainless steel inner chamber with powder-coated outer body ensures durability and corrosion resistance.
- LED lighting inside the chamber allows easy monitoring of samples.
- Includes over-temperature protection and compressor safety for secure and long-term operation.
SPECIFICATIONS
| Working Temperature Range | 5°C to 60°C |
| Temperature Accuracy | ±1°C |
| Temperature Controller | PID Microprocessor Controller |
| Temperature Uniformity | High uniformity with air circulation |
| Shaking Speed (RPM) | 35–250 RPM |
| RPM Display | Digital |
| Shelves | 1 Wire Mesh |
| Type of Shelves | Removable |
| Material of Shelves | Stainless Steel (SS) |
| Air Circulation | Air Circulating Fan |
| Illumination | LED Light inside the chamber for sample viewing |
| Material of Inner Chamber | Stainless Steel |
| Material of Outer Body | GI sheet powder coated |
| Insulation | Glass wool / PUF (Polyurethane Foam) |
| Chamber Construction | Double walled |
| Temperature Controller Type | PID Controller |
| Power Supply | 220/230V AC |
AVAILABLE MODELS
| Model No | Chamber Dimensions (W×D×H) | No of Flask 250ml |
|---|---|---|
| EA301 | 460X460X610mm | 9 |
| EA302 | 560X560X710mm | 16 |
| EA303 | 760X760X760mm | 25 |
